Japan’s World-Record-Setting Akashi Kaikyō Bridge

Did you know that the world’s longest suspension bridge is located in Japan? Called the Akashi Kaikyō Ōhashi (明石海峡大橋), the bridge is famous for its revolutionary engineering and stunning views. People can even take tours and climb it! Here’s everything you should know about Japan’s incredible Akashi Kaikyō Bridge.

Intro

The Akashi Kaikyō Bridge (明石海峡大橋) is a suspension bridge that connects Kobe City on the Japanese main island of Honshu to Awaji Island. It crosses over the Akashi Strait (Akashi Kaikyō, 明石海峡) as part of the highway that runs from Honshu all the way to Shikoku. The bridge was completed in the Spring of 1998, and at 1,991 meters (1.237 mi), it boasts the title of having the longest central span of any suspension bridge in the world.

History

Before the Akashi Kaikyō Bridge was built, passengers crossed the Akashi Straight on ferries. This stretch of water is actually quite turbulent and often experiences dangerous storms. In 1955, two ferries full of passengers sank in the strait during a storm, and 168 people were killed. This tragedy led the Japanese government to develop plans for a bridge to cross the strait.

The original plan for construction was for a combination railway-road bridge, but when the work on the bridge began in April 1988, the construction plan was changed to a 6-lane roadway. Actual construction did not begin until May 1988, and involved contributions from over 100 different contractors.

When the bridge was finally completed and opened for traffic on April 5, 1998, the occasion was marked by a ceremony officiated by the Crown Prince Naruhito, the Crown Princess Masako, and the Construction Minister Tsutomu Kawara.

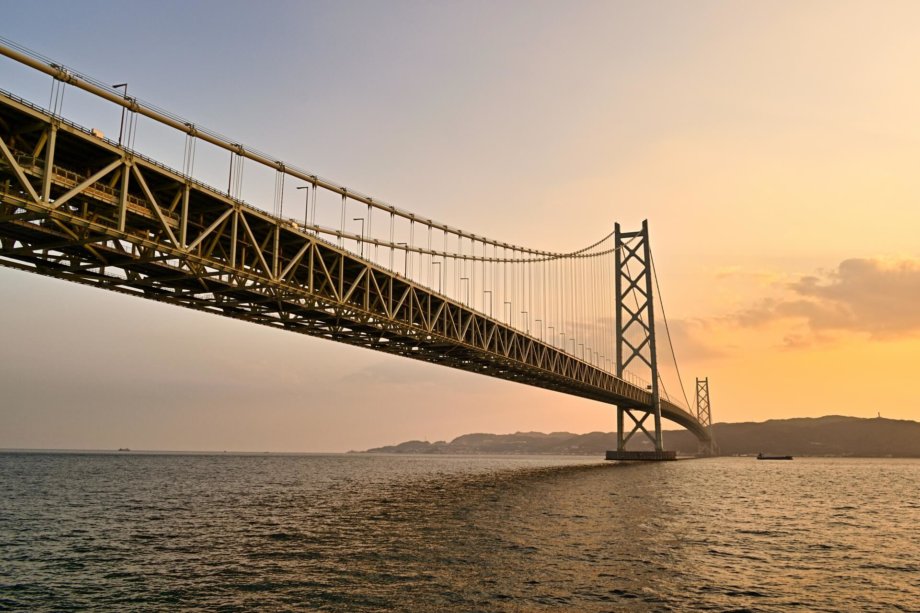

akashi bridge sunset

Construction

Construction of the bridge began in May 1988 and took close to ten years to complete. More than 100 contractors were involved in the construction of the bridge, the main contractor being Honshu Shikoku Bridge Authority.

The construction of the bridge required incredible engineering, advanced technology, and the development unique methods and materials to ensure the massive endeavor was a success. The foundation depth of the bridge alone was equivalent to that of a 20-story apartment. Underwater non-disintegration concrete was also specifically developed for the bridge’s construction, for better fluidity and consistency than regular concrete.

Nearly 181,000 tons of steel and 1.4 million cubic meters of concrete were used in the construction of the bridge.

View From Akashi Bridge

The bridge’s two towers were originally 1,990 meters (1.24 mi) apart, but on January 17, 1995, the Great Hanshin earthquake  moved the towers so much that the span had to be increased by a meter. Fortunately, only the towers had been built at the time of the quake.

The Akashi Kaikyō Bridge has six lanes of roadway, three in each direction. The central span is 1,991 meters (1.237 mi), and the two other sections are 960 meters each (0.60 mi). Combined, the bridge is 3,911 meters (2.430 mi) long, and takes just under 10 minutes to drive across.

As expected, the cost of this unprecedented project required a significant expense. The bridge cost an estimated 500 billion Japanese yen (U.S. $3.6 billion) to build in its entirety from start to finish. The expenses were to be repaid by charging drivers a toll to cross the bridge. The toll is 2,300 yen ($21.25) and the bridge is used by approximately 23,000 cars every day. This number of course varies depending upon holidays and even weather.

Standing Strong Against Nature

The high cost of construction was mostly due to the seismic design elements that had to be incorporated to counteract the high levels of seismic activity of the region. The seismic design features of the bridge are quite different and unique when compared to similar bridges constructed in the past. Not only is the substructure is extremely large, but Finite Element Method (FEM) was used to check the seismic stability of the bridge’s foundations.

In addition to seismic activity, the Akashi Kaikyō Bridge was carefully constructed to be especially resistant to all kinds of extreme sitations. The bridge was designed with a special system that allows it to withstand winds of 286 kilometers per hour (178 mph), as well as earthquakes measuring up to magnitude 8.5, and even strong sea currents. The bridge also contains tuned mass dampers that are designed to operate at the resonance frequency of the bridge to dampen any forces.

The two main supporting towers rise 282.8 m (928 ft) above sea level, and the bridge can expand because of heat by up to 2 m (6.6 ft) over the course of a single day. Each tower anchorage required 350,000 tonnes (340,000 long tons; 390,000 short tons) of concrete. The steel cables have 300,000 kilometers (190,000 mi) of wire, and are incredibly thick: each cable is 112 centimeters (44 inches) in diameter and contains 36,830 strands of wire.

Nighttime Illuminations

At night, the Akashi Kaikyo Bridge is lit by an impressive 1,737 illumination lights. 1,084 lights are on the main cables, 116 on the main towers, 405 on the girders and 132 on the anchorages. Sets of three high-intensity discharge lamps in the colors red, green and blue are mounted on the main cables. The bridge makes use of an RGB color model and computer technology to create a variety of combinations. There are 28 different patterns that are used for special occasions as national or regional holidays, memorial days or festivities.

Akashi Kaikyō Bridge Tours

Today, the bridge offers interactive tours for those interested in the construction as well as the incredible views.

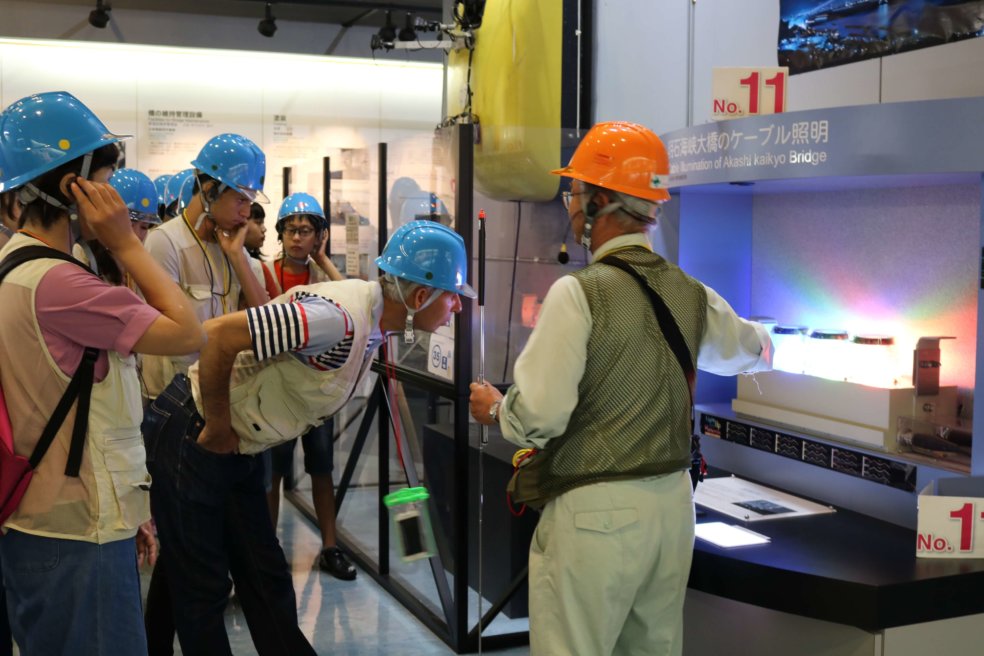

The Bridge Exhibition Center at the foot of the Kobe side of the bridge provides interactive presentations and display models about both the planning and construction of the bridge, as well as information about other suspension bridges around the world. There is also a video about the construction of the bridge, with English subtitles. Please note that the detailed explanations by a Japanese guide are available in Japanese only.

Photo: Kobe City PR Ambassadors

The Maiko Marine Promenade is made up of the of observatory hallways and walkways beneath the bridge’s platform, about 50 meters above the water. They are accessed by elevator from the base of the bridge (on the Kobe side). The Maiko Marine Promenade hallways offer unique views of the bridge’s interior, the Akashi Strait, and even Osaka Bay.

The Bridge Exhibition Center and the Maiko Marine Promenade are located a short walk from Maiko Station on the JR Sanyo Line or Maiko-Koen Station on the Sanyo Railway Main Line.

English Website

Facebook Live: From Atop Akashi Bridge!

We joined a tour on the Akashi Bridge! Check out our Facebook live to see the incredible view:

Live: Akashi Kaikyo ōhashi, the longest bridge in the world!

We’re joining Bridge World tour at Akashi Kaikyo ōhashi, the longest suspension bridge in the world! Length: 3,911 m, Height: 283m above sea level. Magnificent Views!!
